The national distributor of ClimaFoam® in New Zealand

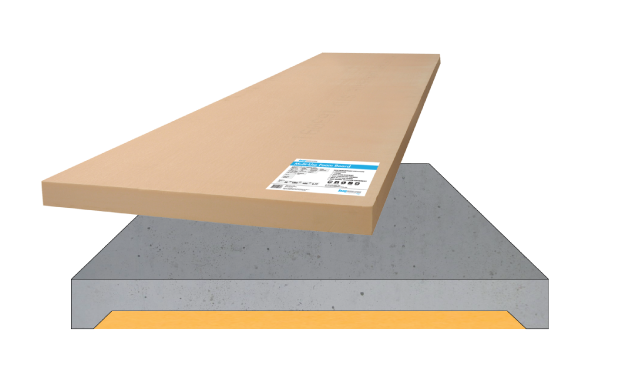

ClimaFoam® XPS Board is ideal for the insulation of concrete slabs and concrete retaining walls. The product has a high compressive strength and the closed
cell structure makes it resistant to water. ClimaFoam® XPS Board has a low thermal conductivity which produces high R-Values relative to its thickness.
ClimaFoam® XPS Board is durable and equipped for ‘site survival’.
APPLICATIONS:
ClimaFoam® XPS Board is ideal for the insulation of concrete slabs and concrete retaining walls. The product has a high compressive strength and the closed
cell structure makes it resistant to water. ClimaFoam® XPS Board has a low thermal conductivity which produces high R-Values relative to its thickness.
ClimaFoam® XPS Board is durable and equipped for ‘site survival’.
APPLICATIONS:
|
|
|
|
|
|---|---|---|---|---|
|
|
|
|
|
Thermal Conductivity (W/mK) |
0.028 |
0.028 |
0.028 |
0.028 |
|
30 |
40 |
50 |
75 |
Width |
1200 |
1200 |
1200 |
1200 |
Length |
2200 |
2200 |
2200 |
2200 |
Joint |
Ship-lap (long edge only) |
Ship-lap (long edge only) |
Ship-lap (long edge only) |
Ship-lap (long edge only) |
Compressive Strength (kPa) |
250 |
250 |
250 |
250 |
Material |
R-Value |
Thermal Conductivity (W/mK) |
Thickness |
Width |
Length |
Joint |
Compressive Strength (kPa) |
|---|---|---|---|---|---|---|---|
| 434707 | 1.1 | 0.028 | 30 | 1200 | 2200 | Ship-lap (long edge only) | 250 |
| 455554 | 1.4 | 0.028 | 40 | 1200 | 2200 | Ship-lap (long edge only) | 250 |
| 434706 | 1.8 | 0.028 | 50 | 1200 | 2200 | Ship-lap (long edge only) | 250 |
| 463076 | 2.7 | 0.028 | 75 | 1200 | 2200 | Ship-lap (long edge only) | 250 |
ClimaFoam® XPS Datasheet

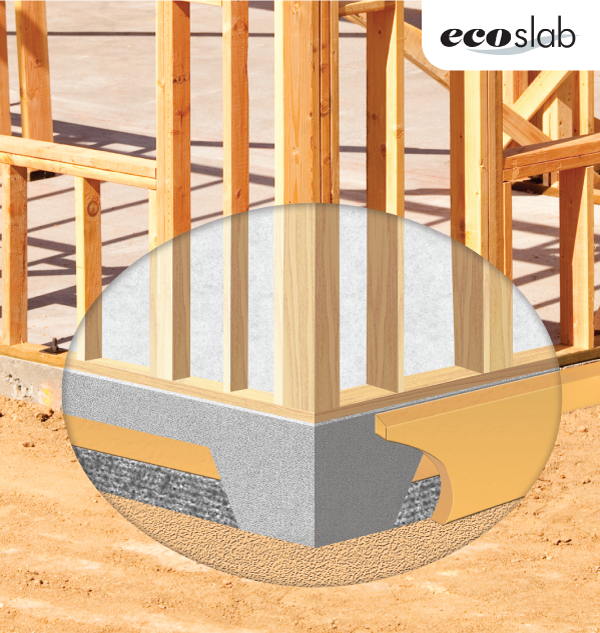

ecoslab® is an engineered thermal insulation system designed to be installed to the outside edges of concrete floor slabs of residential and commercial buildings to assist in improving the performance of buildings energy efficiency. ecoslab® can assist in attaining Homestar™ points.
The ecoslab® system delivers a protected slab edge insulation in a simple process. It includes core insulation of ClimaFoam® XPS together with sealant and protective (paintable) durable outer render applied to withstand the rigours of the external ground placement.
ecoslab® is an engineered thermal insulation system designed to be installed to the outside edges of concrete floor slabs of residential and commercial buildings to assist in improving the performance of buildings energy efficiency. ecoslab® can assist in attaining Homestar™ points.
The ecoslab® system delivers a protected slab edge insulation in a simple process. It includes core insulation of ClimaFoam® XPS together with sealant and protective (paintable) durable outer render applied to withstand the rigours of the external ground placement.
| Height (mm) |
Length (mm) |
Corners |
Corner size L x W x H (mm) |
|---|---|---|---|
| 197 | 2200 | YES | 210 x 210 x 197 |
| 235 | 2200 | YES | 210 x 210 x 235 |
| 300 | 2200 | YES | 210 x 210 x 300 |
| 390 | 2200 | YES | 210 x 210 x 390 |
For 90mm external wall frames
Design Engineer to specify hold-down bolt detail
Additional sizes to suit other slab details can be produced. Allow 3-4 week lead time.
Higher R-Ratings available for 140mm frame walls.
| Height (mm) |
Length (mm) |
Corners |
Corner size L x W x H (mm) |
|---|---|---|---|
| 197 | 2200 | YES | 210 x 210 x 197 |
| 235 | 2200 | YES | 210 x 210 x 235 |
| 300 | 2200 | YES | 210 x 210 x 300 |
| 390 | 2200 | YES | 210 x 210 x 390 |
Pre-Install supplied with premade outside corners, resin/cement adhesive, sealing kit for onsite cuts, and patch kit of resin acrylic polymer chip coat.
Homestar rating and details available based on design criteria. Note details relative to cladding system.
ecoslab® Datasheet
To request further information on ClimaFoam® XPS and ecoslab® insulation contact us below:
